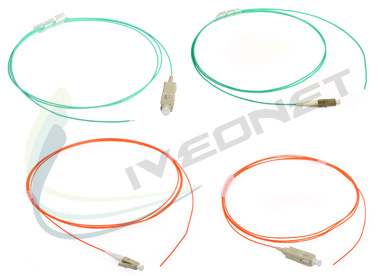

Multi Mode Pigtails
Fiber Optic Pigtail assemblies are utilised in terminating fiber optic cables via fusion splicing. Iveonet ™ offers a wide range of multimode pigtails, designed and manufactured for demanding network applications, comprising of multimode OM1, OM2, OM3 and OM4 (62.5/125, 50/125).
Factory based assembly and machine connector polishing ensure excellence in performance interconnectivity and durability.
Available with the following connector types: ST, SC, LC, FC, SMA, MTRJ in UPC or APC. Coloured jacket, 2mm or 3mm available upon request.
Features
- ISO certified laboratory
- 100% factory tested on optical performance (Insertion Loss & Return Loss)
- End-face geometry requirement comply to Telcordia GR-326-CORE
- Compliant with RoHS
- High concentricity 2.5mm ceramic ferrule for FC, ST, SC and 1.25mm ceramic ferrule for LC
- Available in Multimode OM1, OM2, OM3 and OM4 (62.5/125, 50/125)
- Cable outer jacket available in OFNR / Low Smoke Zero Halogen (LSZH)
- Standard colour is Yellow or White, other colours available upon request
- Customer specified length
- APC connector type available
Applications
- Data centres, premise installations and telecommunication networks
- Process Control, Automation, SCADA Networks
- Ethernet, fibre channel, ATM, LAN, MAN and WAN
- Data communication
- Indoor applications
