Type | Single Mode | Multimode | ||
Polishing Type | PC | UPC | APC | PC |
Insertion Loss (dB) | ≤0.2 (max. ≤0.3) | ≤0.25 (max. ≤0.3) | ||
Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
Repeatability (dB) | IL≤0.1 | IL≤0.1 | ||
Operation Temperature (°C) | -40°C ~+80°C | |||
Ferrule Material | Zirconia Ceramic | |||
Cable Diameter (mm) | 0.9, 2.0, 3.0 |

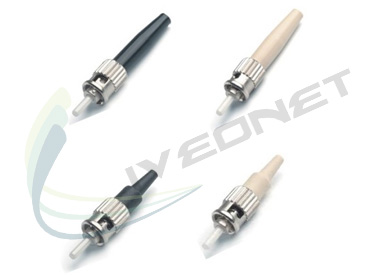

The ST connectors are specially designed screw-on fascination mechanism in the long boot style and provides excellent Kevlar retention without the expense and inconvenience of crimp tools.
Type | Single Mode | Multimode | ||
Polishing Type | PC | UPC | APC | PC |
Insertion Loss (dB) | ≤0.2 (max. ≤0.3) | ≤0.25 (max. ≤0.3) | ||
Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
Repeatability (dB) | IL≤0.1 | IL≤0.1 | ||
Operation Temperature (°C) | -40°C ~+80°C | |||
Ferrule Material | Zirconia Ceramic | |||
Cable Diameter (mm) | 0.9, 2.0, 3.0 |

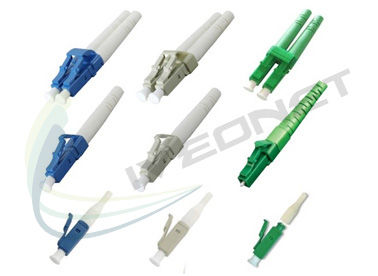

The LC connector is smaller easier-to-use fiber connectivity. The LC connector has reduced the space requirements on fiber optic patch panels by 50%. Connectors accommodate 900 micron buffered fiber and 1.6mm and 2.4mm jacketed cable.
Type | Single Mode | Multimode | ||
Polishing Type | PC | UPC | APC | PC |
Insertion Loss (dB) | ≤0.2 (max. ≤0.3) | ≤0.25 (max. ≤0.3) | ||
Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
Repeatability (dB) | IL≤0.1 | IL≤0.1 | ||
Operation Temperature (°C) | -40°C ~+80°C | |||
Ferrule Material | Zirconia Ceramic | |||
Cable Diameter (mm) | 0.9, 2.0, 3.0 |

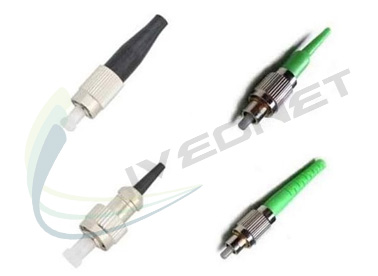

FC optical fiber connectors are specifically designed for telecommunication applications. The pre-assembled, one-piece body design and the pre-polished ferrules provide quick and economical terminations both in factory and in-the-field settings. Connector mating is achieved by using bulkhead feed-through adapters. These adapters combine a metal housing and either a precision zirconia ceramic or a rugged phosphor bronze sleeve.
Type | Single Mode | Multimode | ||
Polishing Type | PC | UPC | APC | PC |
Insertion Loss (dB) | ≤0.2 (max. ≤0.3) | ≤0.25 (max. ≤0.3) | ||
Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
Repeatability (dB) | IL≤0.1 | IL≤0.1 | ||
Operation Temperature (°C) | -40°C ~+80 | |||
Ferrule Material | Zirconia Ceramic | |||
Cable Diameter (mm) | 0.9, 2.0, 3.0 |
The MTRJ connector was developed to meet growing customer demands for smaller, lower cost, and easier-to-use fiber optic connectivity. The MTRJ reduces the space required on panels, wall plates and in closets by 50% throughout the network.
Description | Single Mode | Multimode |
Insertion Loss (dB) | ≤0.20 | ≤0.25 |
Return Loss (dB) | ≥45 (PC) | |
Durability | <0.1dB typical change, 200 matings | |
Operating Temperature (°C) | -40 to + 85 | -40 to + 85 |
Ferrule Hole Sizes (μm) | 126.0+1/-0 |
